Setup

The system used in the project was developed and set-up in conjunction with OpenEnergyMonitor, open-source energy and environmental monitoring.

The hardware is based on an Arduino an open-source microprocessor development board. Data is obtained from 5 x DS18B20 temperature sensors, readings are taken every 60’s. The equipment in the hive is powered by a 12V lead acid battery which is kept topped up by a small solar PV panel.

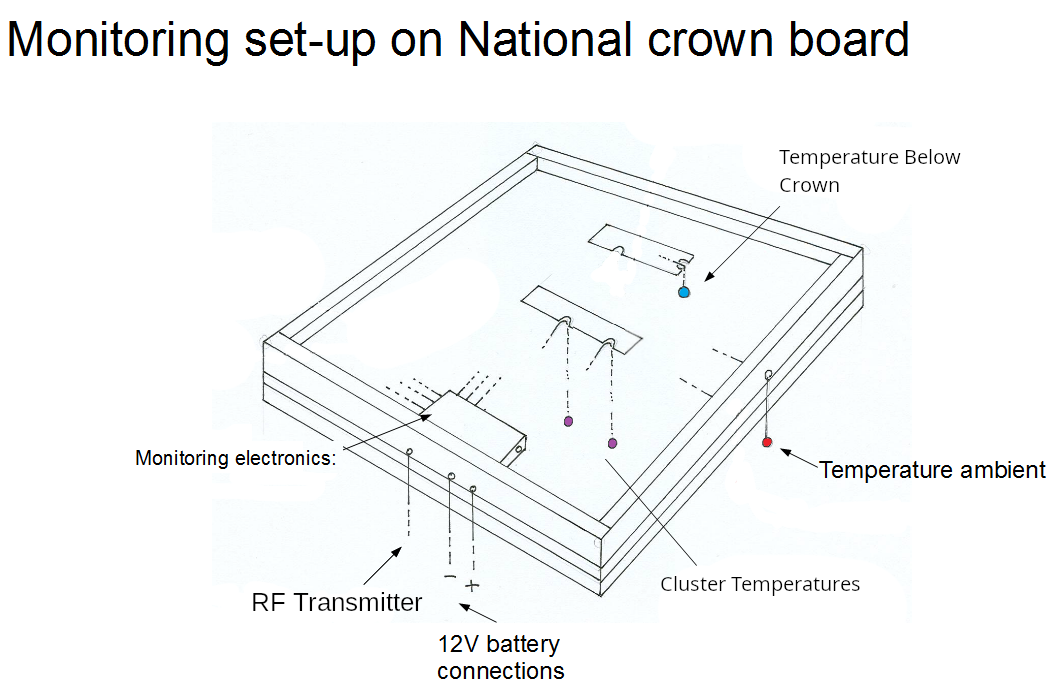

Crownboard diagram

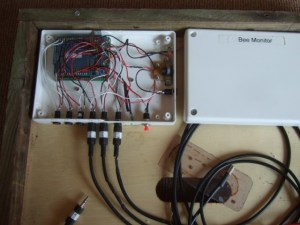

Hive Hardware

Hive Hardware

The data is transmitted from the hive via ASK 433Mhz RF link to a receiver Arduino board about 50m away which is connected via USB serial to a web-connected Raspberry Pi (Linux credit card sized mini-computer) running OpenEnergyMonitor’s EmonHub software. The serial listener in EmonHub is used to decode the data and post to Emoncms.org open-source web-application for logging, graphing and analysing.

Arduino sketch open-source code and further info on Raspberry Pi EmonHub setup can be found on the BeeMonitor GitHub repository.

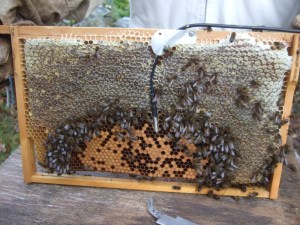

brood_frame_sensor_15-10-12

Brood frame with Cluster sensor

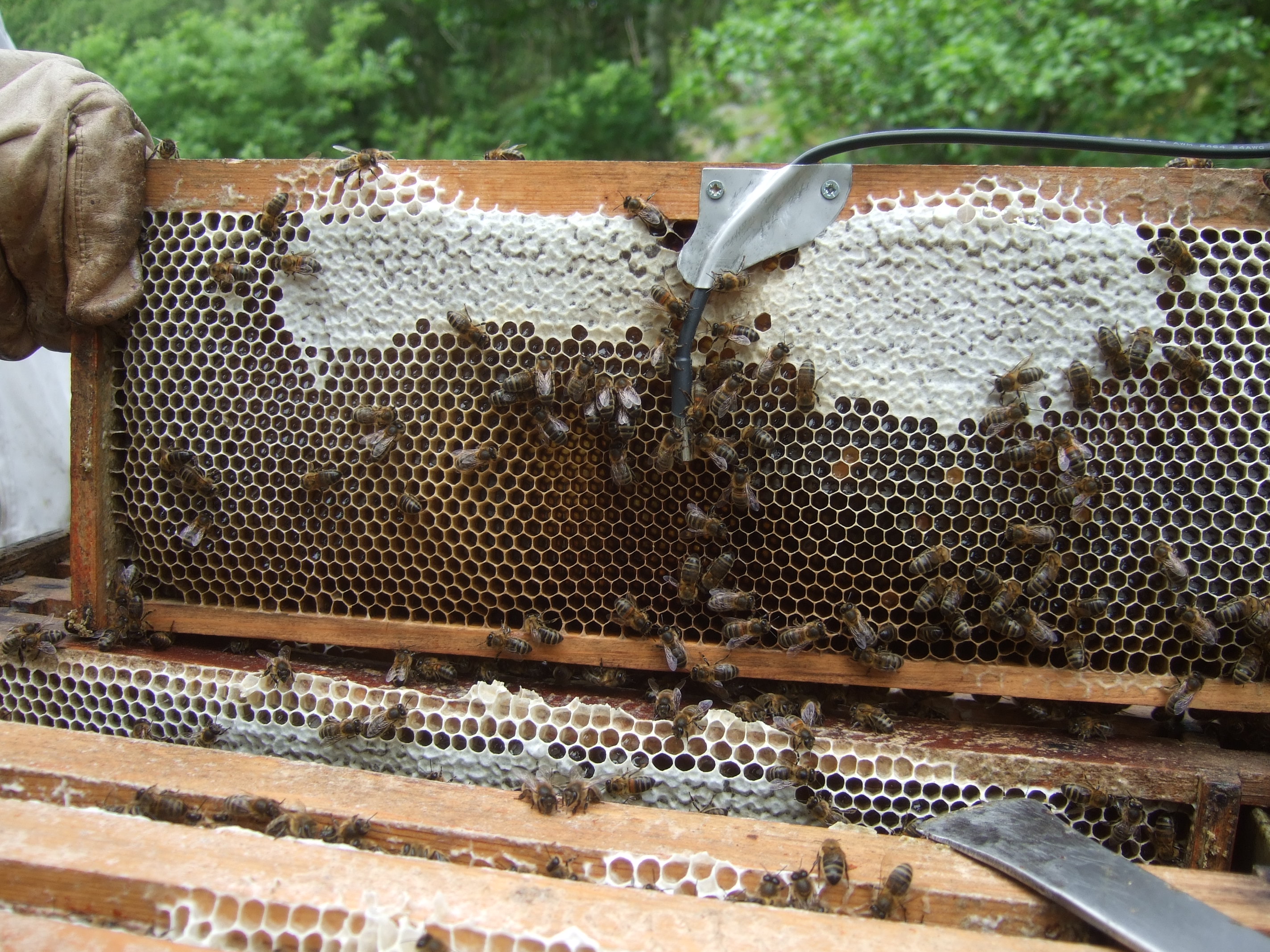

Sensor in Honey Super

Sensor in Honey Super

4 thoughts on “Setup”

  1. you say that :”equipment in the hive is powered by a 12V lead acid battery which is kept topped up by a small solar PV panel.can you harvest thermoelectric from the bees/hives to power the equipment?

    • Interesting idea! Assuming we could capture the energy I don’t think it would be nearly enough to power the system. Not sure how we would go about attempting to captured…
